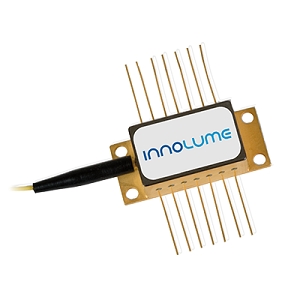

SM-1240-YY-500

Laser Diode by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SM-1240-YY-500 from Innolume is a Laser Diode with Wavelength 1235 nm, 1240 nm, 1245 nm, (Mean), Output Power 500 mW, Output Power 500 mW, Output Power (CW) 500 mW, Threshold Current 100 to 180 mA. More details for SM-1240-YY-500 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SM-1240-YY-500
  • Manufacturer
    Innolume
  • Description
    Fiber Coupled High Power Fabry-Perot Laser Diode

Applications

  • Application
    Raman Amplifier pumping

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1235 nm, 1240 nm, 1245 nm, (Mean)
  • Output Power
    500 mW
  • Output Power
    500 mW
  • Output Power (CW)
    500 mW
  • Spectral Width (FWHM)
    5 to 8 nm
  • Polarization Extinction Ratio
    15 to 18 dB
  • Transverse Mode
    TE
  • Wavelength Temp. Coefficient
    0.5 nm/Degree C
  • Threshold Current :
    100 to 180 mA
  • Forward Voltage
    1.6 to 1.9 V
  • Reverse Voltage
    2 V
  • Operating Current
    1.2 to 1.5 A
  • Operating Current
    1200 to 1500 mA
  • Operating Voltage
    1.6 to 1.9 V
  • Operating Current (CW)
    1200 to 1500 mA
  • Thermistor Resistance
    10±1 kOhms
  • Laser Color
    Infrared
  • Fiber Modes
    Single Mode, Polarization Maintaining
  • Numerical Aperture
    0.12 to 0.14
  • Package Type
    Butterfly
  • Package
    14-pins Butterfly

Physical Properties

  • Fiber core diameter
    6.2±0.3 to 6.6±0.3 µm

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
