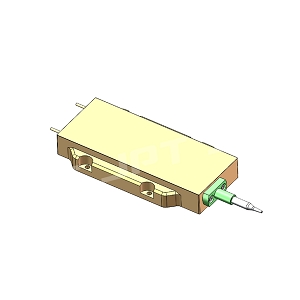

976nm - 500W - 200µm| JPT

Laser Diode by JPT Opto-Electronics
Request Quote

Note: Your Quotation Request will be directed to JPT Opto-Electronics.

The 976nm - 500W - 200µm| JPT from JPT Opto-Electronics is a Laser Diode with Wavelength 973 nm, 976 nm, 979 nm (Center), Output Power 500 W, Output Power 500 W, Threshold Current 1.45 A, Operating Current 28 to 30 A. More details for 976nm - 500W - 200µm| JPT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    976nm - 500W - 200µm| JPT
  • Manufacturer
    JPT Opto-Electronics
  • Description
    976 nm Multiple single emitter based diode laser wth Fiber Pigtailed package

Applications

  • Application
    Fiber laser pumping, Material processing

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    973 nm, 976 nm, 979 nm (Center)
  • Output Power
    500 W
  • Output Power
    500 W
  • Spectral Width (FWHM)
    6 nm
  • Configuration
    Single-Emitter
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Power Conversion Efficiency
    0.45
  • Threshold Current :
    1.45 A
  • Operating Current
    28 to 30 A
  • Operating Current
    28 to 30 A
  • Operating Voltage
    36 V
  • Numerical Aperture
    0.22, 0.165
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Pigtailed
  • Package
    2-Pin Fiber Pigtailed

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    1.5 m

Temperature

  • Operating Temperature
    15 to 40 Degree C
  • Storage Temperature
    -20 to 85 Degree C
