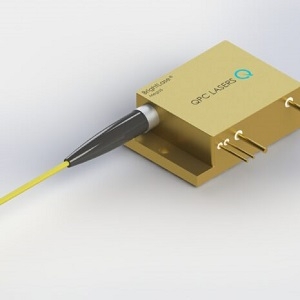

8808-0021

Laser Diode by QPC Lasers
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPC Lasers.

The 8808-0021 from QPC Lasers is a Laser Diode with Wavelength 803 to 813 nm, Output Power 40 W, Output Power 40 W, Output Power (CW) 40 W, Threshold Current 1.2 to 1.5 A. More details for 8808-0021 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    8808-0021
  • Manufacturer
    QPC Lasers
  • Description
    808 nm, 40 W, 200 µm Detachable Fiber-Coupled Module

Applications

  • Application
    Illumination, Materials Processing, Plastic Welding, Pumping, Soldering

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    803 to 813 nm
  • Output Power
    40 W
  • Output Power
    40 W
  • Output Power (CW)
    40 W
  • Spectral Width (FWHM)
    4 nm
  • Slope Efficiency
    5.6 W/A
  • Wavelength Temp. Coefficient
    0.3 nm/Degree C
  • Power Conversion Efficiency
    0.52
  • Threshold Current :
    1.2 to 1.5 A
  • Reverse Voltage
    12.5 V
  • Operating Current
    9 to 10 A
  • Operating Current
    9 to 10 A
  • Operating Voltage
    9 to 10 V
  • Laser Class
    Class 4
  • Numerical Aperture
    0.22
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    Fiber Detachable
  • Package
    Fiber Detachable
  • Relative Humidity
    15 to 75%

Physical Properties

  • Fiber core diameter
    200 µm
  • Fiber length
    2 m
  • RoHS
    Yes

Connections & Interface

  • Connector
    SMA905

Temperature

  • Operating Temperature
    20 to 30 Degree C
  • Storage Temperature
    -40 to 70 Degree C
