LDH1064CxWI

Laser Diode by Lasermate Group
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lasermate Group.

The LDH1064CxWI from Lasermate Group is a Laser Diode with Wavelength 1064 nm (Center), Output Power 40 to 500 W, Output Power 40 to 500 W, Threshold Current <7 to 25 A, Operating Current <40 to 110 A. More details for LDH1064CxWI can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDH1064CxWI
  • Manufacturer
    Lasermate Group
  • Description

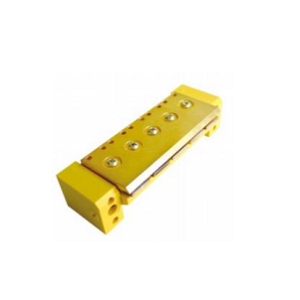

    1064nm CW Microchannel Water-Cooled Horizontal Linear Diode Laser Array

Applications

  • Application
    Pumping, Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm (Center)
  • Output Power
    40 to 500 W
  • Output Power
    40 to 500 W
  • Spectral Width (FWHM)
    <5 nm
  • Configuration
    Array, Stack
  • Beam Divergence
    <39 Degree (Parallel), <10 Degree (Perpendicular)
  • Beam Divergence Parallel
    <39 Degree
  • Beam Divergence Perpendicular
    <10 Degree
  • Threshold Current :
    <7 to 25 A
  • Operating Current
    <40 to 110 A
  • Operating Current
    <40 to 110 A
  • Operating Voltage
    <2 V
  • Package Type
    Bar
  • Package
    Bar
  • Stack/Array
    Array/Stack, Horizontally

Temperature

  • Operating Temperature
    15 to 35 Degree C
  • Storage Temperature
    10 to 60 Degree C
