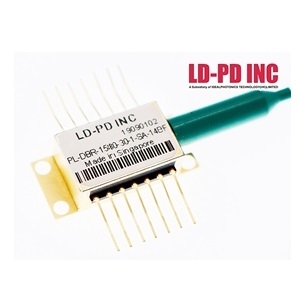

PL-DBR-1580-30-1-SA-14BF

Laser Diode by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-DBR-1580-30-1-SA-14BF from LD-PD Inc is a Laser Diode with Wavelength 1580 nm, Output Power 30 mW, Output Power 30 mW, Threshold Current 40 mA, Operating Current 0 to 250 mA. More details for PL-DBR-1580-30-1-SA-14BF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-DBR-1580-30-1-SA-14BF
  • Manufacturer
    LD-PD Inc
  • Description
    1580nm DBR SM laser diode

Applications

  • Application
    Optical Communication Access Network Application, Optical Sensing, High-Resolution Spectroscopy, Optical Metrology and Sensors, Fiber Amplifier Seeding, Nonlinear Frequency Conversion, Laser Cooling and Trapping, Free-Space Optical Communications

General Parameters

  • Technology
    Distributed-Bragg-Reflector (DBR)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1580 nm
  • Output Power
    30 mW
  • Output Power
    30 mW
  • Spectral Width (FWHM)
    3 MHz
  • Wavelength Tolerance
    ±1 nm
  • Polarization Extinction Ratio
    20 dB
  • Threshold Current :
    40 mA
  • Operating Current
    0 to 250 mA
  • Operating Current
    0 to 250 mA
  • Operating Current (CW)
    0 to 250 mA
  • Laser Color
    Near-Infrared
  • Modulation
    10 Gb/s
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Relative Intensity Noise
    -135 dB/Hz
  • Note
    Tunable Bandwidth: 8 nm

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Operating Temperature
    -5 to 75 Degree C
  • Storage Temperature
    -40 to 85 Degree C
