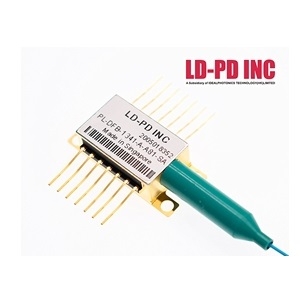

PL-DFB-1341-A-A81-PA

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

Output power 10 mW,Narrow Linewidth < 2MHz, Tolerance ±1nm,PM Fiber,FC/APC

Product Specifications

View similar products

Product Details

  • Part Number
    PL-DFB-1341-A-A81-PA
  • Manufacturer
    LD-PD Inc
  • Description
    1341 nm DFB Laser diode for H2O Sensing

Applications

  • Application
    Tunable diode laser absorption spectroscopy, H2O(Gas Monitoring)

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1341 nm
  • Output Power
    10 mW
  • Output Power
    0.01 W
  • Spectral Width (FWHM)
    <2 MHz
  • Wavelength Tolerance
    ±1 nm
  • Forward Voltage
    0.8 to 1.2 V
  • Reverse Voltage
    2 V
  • Operating Current
    0 to 120 mA
  • Operating Current
    0 to 120 mA
  • Reverse Voltage(PD)
    20 V
  • Operating Voltage
    0.8 to 1.2 V
  • Fiber Modes
    Polarization Maintaining
  • Package Type
    Butterfly
  • Package
    14-pin Butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
