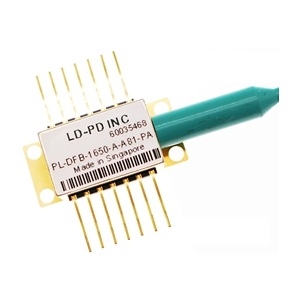

PL-DFB-1651-A-A81-SA

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-DFB-1651-A-A81-SA from LD-PD Inc is a Laser Diode with Wavelength 1651 nm (Center), Output Power 10 mW, Output Power 10 mW, Threshold Current 20 to 30 mA, Operating Current 80 to 120 mA. More details for PL-DFB-1651-A-A81-SA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-DFB-1651-A-A81-SA
  • Manufacturer
    LD-PD Inc
  • Description
    1651nm DFB SM Laser diode (Type B )

Applications

  • Application
    Tunable diode laser absorption spectroscopy, CH4 Monitoring

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1651 nm (Center)
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Spectral Width (FWHM)
    <2 MHz
  • Slope Efficiency
    0.08 to 0.12 mW/mA (Quantum)
  • Wavelength Tolerance
    ±1 nm
  • Wavelength Temp. Coefficient
    -4.4 nm / Degree C
  • Threshold Current :
    20 to 30 mA
  • Forward Voltage
    1.3 to 2 V
  • Reverse Voltage
    2 V
  • Operating Current
    80 to 120 mA
  • Operating Current
    80 to 120 mA
  • Reverse Voltage(PD)
    20 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
