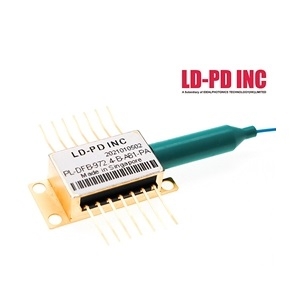

PL-DFB-972.4-B-A81-PA

Laser Diode by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

Central wavelength 972.4nm, Output power 40 - 60mW, Narrow Linewidth < 2MHz, Tolerance ±1nm, PM980 Fibe, FC/APC

Product Specifications

View similar products

Product Details

  • Part Number
    PL-DFB-972.4-B-A81-PA
  • Manufacturer
    LD-PD Inc
  • Description
    927.4 nm DFB Laser diode for Seed Laser

Applications

  • Application
    Tunable diode laser absorption spectroscopy, Seed laser, Fiber laser

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    972.4 nm
  • Output Power
    40 to 60 mW
  • Output Power
    0.04 to 0.06 W
  • Spectral Width (FWHM)
    <2 MHz
  • Slope Efficiency
    0.08 to 0.12 mW/mA (Quantum)
  • Wavelength Tolerance
    ±1 nm
  • Wavelength Temp. Coefficient
    -4.4 nm/ Degree C
  • Threshold Current :
    20 to 30 mA
  • Forward Voltage
    1.3 to 2 V
  • Reverse Voltage
    2 V
  • Operating Current
    120 to 150 mA
  • Operating Current
    120 to 150 mA
  • Reverse Voltage(PD)
    20 V
  • Operating Voltage
    1.3 to 2 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Polarization Maintaining
  • Package Type
    Butterfly
  • Package
    14-pin Butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
