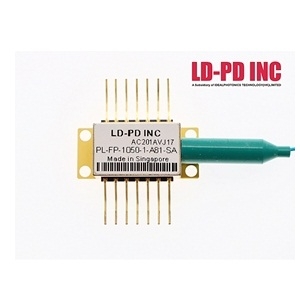

PL-FP-1050-A-A81-SA

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-FP-1050-A-A81-SA from LD-PD Inc is a Laser Diode with Wavelength 1050 nm, Output Power 50 mW, Output Power 50 mW, Threshold Current 30 to 40 mA, Operating Current 200 to 300 mA. More details for PL-FP-1050-A-A81-SA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-FP-1050-A-A81-SA
  • Manufacturer
    LD-PD Inc
  • Description
    1050nm FP Single-Mode 14-Pin Butterfly Module Laser Diode

Applications

  • Application
    Printing, Optical Data Storage, Spectral Analysis, Graphics, Laser Ranging, Illumination, Defense

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1050 nm
  • Output Power
    50 mW
  • Output Power
    50 mW
  • Spectral Width (FWHM)
    1.5 nm
  • Wavelength Tolerance
    ±1 nm
  • Polarization Extinction Ratio
    17 to 20 nm/K
  • Rise/Fall Time
    0.2 ns
  • Threshold Current :
    30 to 40 mA
  • Forward Voltage
    1.8 to 2.5 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    200 to 300 mA
  • Operating Current
    200 to 300 mA
  • Reverse Voltage(PD)
    10 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    0.1 nm/mA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
