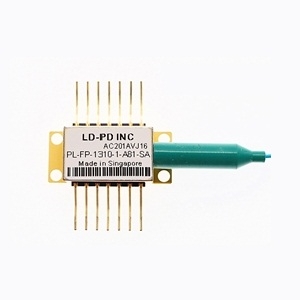

PL-FP-1310-A-A81-SA

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-FP-1310-A-A81-SA from LD-PD Inc is a Laser Diode with Wavelength 1310 nm (Center), Output Power 30 mW, Output Power 30 mW, Threshold Current 30 to 40 mA, Operating Current 150 to 200 mA. More details for PL-FP-1310-A-A81-SA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-FP-1310-A-A81-SA
  • Manufacturer
    LD-PD Inc
  • Description
    1310nm FP SM Module Laser Diodes

Applications

  • Application
    Printing, Optical Data Storage, Spectral Analysis, Graphics, Laser Ranging, Illumination, Defense

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1310 nm (Center)
  • Output Power
    30 mW
  • Output Power
    30 mW
  • Spectral Width (FWHM)
    0.5 nm
  • Wavelength Tolerance
    ±1 nm
  • Polarization Extinction Ratio
    17 to 20 dB nm
  • Wavelength Temp. Coefficient
    -4.4 nm / Degree C
  • Threshold Current :
    30 to 40 mA
  • Forward Voltage
    1.8 to 2.5 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    150 to 200 mA
  • Operating Current
    150 to 200 mA
  • Reverse Voltage(PD)
    10 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
