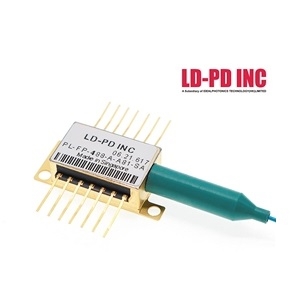

PL-FP-488-A-A81-SA

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

Central wavelength 488nm, output Power 20mW, Spectral Width 0.8nm,Tolerance ±1nm, with TEC, Nufern HP460, FC/APC

Product Specifications

View similar products

Product Details

  • Part Number
    PL-FP-488-A-A81-SA
  • Manufacturer
    LD-PD Inc
  • Description
    488nm FP Laser diode

Applications

  • Application
    Fiber transmission systems, Laser interferometric, Laser indication, Testing Light source

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    488 nm
  • Output Power
    20 mW
  • Output Power
    0.02 W
  • Spectral Width (FWHM)
    0.8 nm
  • Wavelength Tolerance
    ±1 nm
  • Polarization Extinction Ratio
    17 to 20 dB
  • Wavelength Temp. Coefficient
    -4.4 nm/ Degree C
  • Threshold Current :
    20 to 30 mA
  • Forward Voltage
    6 to 8 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    120 to 150 mA
  • Operating Current
    120 to 150 mA
  • Reverse Voltage(PD)
    10 V
  • Operating Voltage
    6 to 8 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    14-pin Butterfly
  • Note
    Case Temperature: -5 to 70 Degree C

Connections & Interface

  • Connector
    FC/APC
