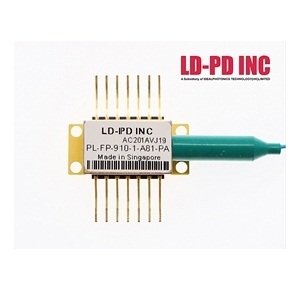

PL-FP-910-B-A82-PA

Laser Diode by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-FP-910-B-A82-PA from LD-PD Inc is a Laser Diode with Wavelength 910 nm, Output Power 100 mW, Output Power 100 mW, Threshold Current 30 to 40 mA, Operating Current 120 to 200 mA. More details for PL-FP-910-B-A82-PA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-FP-910-B-A82-PA
  • Manufacturer
    LD-PD Inc
  • Description
    910nm FP Pump Laser Diode

Applications

  • Application
    Pump Laser, Dense wavelength division multiplexing (DWDM), EDFAs for small package designs, High bit-rate, high channel-count EDFAs, CATV distribution

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    910 nm
  • Output Power
    100 mW
  • Output Power
    100 mW
  • Spectral Width (FWHM)
    0.8 nm
  • Wavelength Tolerance
    ±2 nm
  • Polarization Extinction Ratio
    17 to 20 dB
  • Threshold Current :
    30 to 40 mA
  • Forward Voltage
    1.8 to 2.6 V
  • Forward Current(PD)
    10 mA
  • Reverse Voltage
    1.8 V
  • Operating Current
    120 to 200 mA
  • Operating Current
    120 to 200 mA
  • Reverse Voltage(PD)
    10 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Polarization Maintaining
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Relative Humidity
    5 to 95%
  • Note
    Cladding Diameter: 125um, Mode Field diameter: 5.9um, Max Attenuation: 2.1dB/km, Coating Diameter: 250um, Cut off wavelength: 920 nmto 5 uA/mW, Fiber Bend Radius: 16 mm, Case Temperature: -5 to 70 Degree C

Physical Properties

  • Fiber core diameter
    <0.5 µm

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Storage Temperature
    -40 to 85 Degree C
