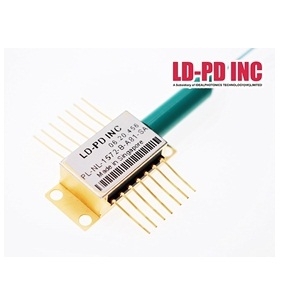

PL-NL-1572-B-A81-PA

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-NL-1572-B-A81-PA from LD-PD Inc is a Laser Diode with Wavelength 1572 nm, Output Power 30 mW, Output Power 30 mW, Threshold Current 45 to 65 mA, Operating Current 250 to 300 mA. More details for PL-NL-1572-B-A81-PA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-NL-1572-B-A81-PA
  • Manufacturer
    LD-PD Inc
  • Description
    1572nm Narrow Linewidth Laser Diode

Applications

  • Application
    Laser interference experiment, Drop-side of DWDM long-haul transport equipment, Optical Test and Instrumentation, Microwave Photonics, CATV networks, Sensors

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1572 nm
  • Output Power
    30 mW
  • Output Power
    30 mW
  • Spectral Width (FWHM)
    <10 MHz
  • Slope Efficiency
    0.064 to 0.1 mW/mA
  • Polarization Extinction Ratio
    20 dB
  • Wavelength Temp. Coefficient
    15 to 30 pm/ Degree C
  • Threshold Current :
    45 to 65 mA
  • Forward Voltage
    1.3 to 1.8 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    250 to 300 mA
  • Operating Current
    250 to 300 mA
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Polarization Maintaining
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Relative Intensity Noise
    -150 dB/Hz
  • Note
    Jacket Type: 900 µm, Input Impedance: 22 to 28 Ohms, SMSR: 40 dB, Optical Isolation: 30 dB

Physical Properties

  • Fiber length
    1 m ± 0.1 m

Connections & Interface

  • Connector
    FC/APC
