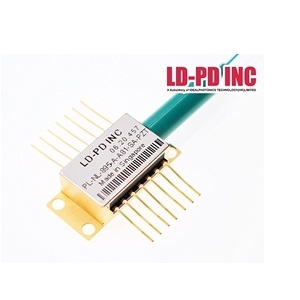

PL-NL-895-A-A81-SA-PZT

Laser Diode by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-NL-895-A-A81-SA-PZT from LD-PD Inc is a Laser Diode with Wavelength 895 nm, Output Power 10 mW, Output Power 10 mW, Threshold Current 45 to 65 mA, Operating Current 150 to 200 mA. More details for PL-NL-895-A-A81-SA-PZT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-NL-895-A-A81-SA-PZT
  • Manufacturer
    LD-PD Inc
  • Description
    895nm Single frequency FBG stabilized Tunable Narrow Linewidth Laser Diode

Applications

  • Application
    Laser interference experiment, Drop-side of DWDM long-haul transport equipment, Optical Test and Instrumentation, Microwave Photonics, CATV networks, Sensors

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    895 nm
  • Output Power
    10 mW
  • Output Power
    10 mW
  • Spectral Width (FWHM)
    <1 MHz
  • Slope Efficiency
    0.064 to 0.1 mW/mA
  • Polarization Extinction Ratio
    20 dB
  • Wavelength Temp. Coefficient
    60 to 80 pm/ Degree C
  • Threshold Current :
    45 to 65 mA
  • Forward Voltage
    1.3 to 1.8 V
  • Reverse Voltage
    1.8 V
  • Operating Current
    150 to 200 mA
  • Operating Current
    150 to 200 mA
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Fiber Modes
    Single Mode
  • Photo Diode Dark Current
    0.1 µA
  • Package Type
    Butterfly
  • Package
    Hermetic 14-pin DIL or 14-pin Butterfly
  • Relative Intensity Noise
    -145 dB/Hz
  • Note
    Jacket Type: 900 µm, Cooler Voltage: 3.5 V, Cooler Current: 1.4 A, Tuning Range: 1 to 1.5 nm

Connections & Interface

  • Connector
    FC/APC
