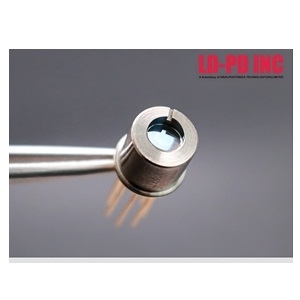

PL-VCSEL-763-1-A81-TO39-FS

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-VCSEL-763-1-A81-TO39-FS from LD-PD Inc is a Laser Diode with Wavelength 763 nm, Output Power 0.25 to 0.7 mW, Output Power 0.25 to 0.7 mW, Threshold Current 0.5 mA, Operating Current 2 mA. More details for PL-VCSEL-763-1-A81-TO39-FS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PL-VCSEL-763-1-A81-TO39-FS
  • Manufacturer
    LD-PD Inc
  • Description
    760nm/763nm SM VCSEL Laser diode for O2 Sensing (TO39 Package)

Applications

  • Application
    Tunable diode laser absorption spectroscopy, Oxygen Monitoring

General Parameters

  • Technology
    Vertical-Cavity Surface-Emitting Laser (VCSEL)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    763 nm
  • Output Power
    0.25 to 0.7 mW
  • Output Power
    0.25 to 0.7 mW
  • Spectral Width (FWHM)
    100 MHz
  • Slope Efficiency
    0.3 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    10 to 25 Degree
  • Wavelength Tolerance
    ±0.5 nm
  • Power Conversion Efficiency
    12% (Electro optic conversion rate)
  • Threshold Current :
    0.5 mA
  • Forward Voltage
    0.8 to 1.2 V
  • Operating Current
    2 mA
  • Operating Current
    2 mA
  • Operating Voltage
    2 V (Laser)
  • Power Dissipation
    5 mW
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Differential Resistance
    150 Ohms
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-39
  • Relative Intensity Noise
    -130 to -120 dB/Hz

Temperature

  • Storage Temperature
    -40 to 125 Degree C
