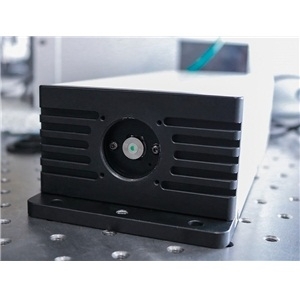

TDLAS-DFB-3291-A-A81

Laser Diode by LD-PD Inc
589 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The TDLAS-DFB-3291-A-A81 from LD-PD Inc is a Laser Diode with Wavelength 3291 nm (Center), Output Power 5 mW, Output Power 5 mW, Threshold Current 15 to 50 mA, Operating Current 120 mA. More details for TDLAS-DFB-3291-A-A81 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TDLAS-DFB-3291-A-A81
  • Manufacturer
    LD-PD Inc
  • Description
    3291nm Single frequency DFB Laser

Applications

  • Application
    TDLAS, Data Communication, MIR Testing

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    3291 nm (Center)
  • Output Power
    5 mW
  • Output Power
    5 mW
  • Slope Efficiency
    0.352 mW/mA
  • Wavelength Tolerance
    ±1 nm
  • Threshold Current :
    15 to 50 mA
  • Operating Current
    120 mA
  • Operating Current
    120 mA
  • Operating Voltage
    5 V
  • Thermistor Resistance
    10000 Ohms
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-pin butterfly
  • Note
    Thermistor Beta: 3930 Case Temperature: -5 to 70 Degree C

Temperature

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C
