ML1003

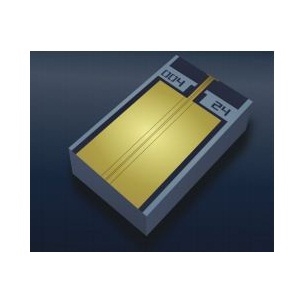

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1003 from Modulight, Inc. is a Laser Diode with Wavelength 1290 to 1330 nm, Output Power 0.3 W, Output Power (CW) 0.3 W, Threshold Current 40 to 60 mA, Operating Current 700 to 750 mA. More details for ML1003 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1003
  • Manufacturer
    Modulight, Inc.
  • Description
    1310 nm high-performance FP chip for pulsed applications

Applications

  • Application
    Test & Measurement
  • Application Industry
    Defense, Industrial, Communications

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Free Space Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1290 to 1330 nm
  • Output Power
    0.3 W
  • Output Power (CW)
    0.3 W
  • Spectral Width (FWHM)
    4 to 7 nm
  • Slope Efficiency
    0.45 W/A
  • Configuration
    Single-Emitter
  • Threshold Current :
    40 to 60 mA
  • Operating Current
    700 to 750 mA
  • Operating Voltage
    1.3 to 2 V
  • Fiber Modes
    Single Mode
  • Package Type
    Surface Mount
  • Package
    Chip

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
