ML1111

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

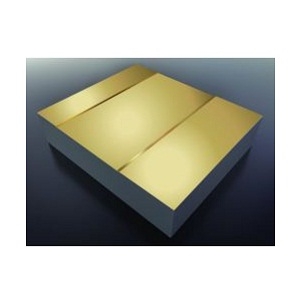

The ML1111 from Modulight, Inc. is a Laser Diode with Wavelength 808 nm, Output Power 2 W, Output Power (CW) 2 W, Threshold Current 500 mA, Operating Current 2.1 A. More details for ML1111 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1111
  • Manufacturer
    Modulight, Inc.
  • Description
    808 nm high-power laser chip

Applications

  • Application
    Illumination, Materials Processing, Aesthetic Treatments
  • Application Industry
    Defense, Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    808 nm
  • Output Power
    2 W
  • Output Power (CW)
    2 W
  • Spectral Width (FWHM)
    4 nm
  • Slope Efficiency
    1.1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    33 Degree
  • Threshold Current :
    500 mA
  • Reverse Voltage
    2 V
  • Operating Current
    2.1 A
  • Operating Voltage
    2 V
  • Package Type
    Surface Mount
  • Package
    Chip, C-Mount

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
