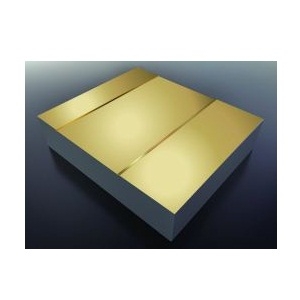

ML1389

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1389 from Modulight, Inc. is a Laser Diode with Wavelength 635 nm, Output Power 0.2 W, Output Power (CW) 0.2 W, Threshold Current 170 mA, Operating Current 420 mA. More details for ML1389 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1389
  • Manufacturer
    Modulight, Inc.
  • Description
    635 nm high-power laser chip for CW applications

Applications

  • Application
    Illumination, Imaging, Laser Projectors , Low-intensity laser therapy, Aesthetic Treatments
  • Application Industry
    Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    635 nm
  • Output Power
    0.2 W
  • Output Power (CW)
    0.2 W
  • Spectral Width (FWHM)
    1 nm
  • Slope Efficiency
    0.9 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    5 Degree
  • Beam Divergence Perpendicular
    40 Degree
  • Threshold Current :
    170 mA
  • Operating Current
    420 mA
  • Operating Voltage
    2.3 V
  • Fiber Modes
    Multi-Mode
  • Package Type
    Surface Mount
  • Package
    Chip, 9 mm

Temperature

  • Operating Temperature
    5 to 20 Degree C
  • Storage Temperature
    -40 to 85 Degree C
