ML1453

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1453 from Modulight, Inc. is a Laser Diode with Wavelength 1420 to 1470 nm, Output Power 0.003 W, Output Power (CW) 0.003 W, Threshold Current 12 to 18 mA, Operating Current 29 to 60 mA. More details for ML1453 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1453
  • Manufacturer
    Modulight, Inc.
  • Description

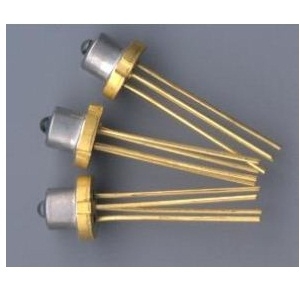

    1430 nm FP Laser Diode in 5.6 mm TO-can

Applications

  • Application
    Digital optical communications
  • Application Industry
    Communications

General Parameters

  • Technology
    Fabry-Perot (FP)
  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1420 to 1470 nm
  • Output Power
    0.003 W
  • Output Power (CW)
    0.003 W
  • Spectral Width (FWHM)
    0.9 to 4 nm
  • Slope Efficiency
    0.16 to 0.32 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    21 Degree
  • Beam Divergence Perpendicular
    36 Degree
  • Laser Gain Medium
    InGaAs
  • Modulation Bandwidth
    2 GHz
  • Threshold Current :
    12 to 18 mA
  • Reverse Voltage
    2 V
  • Operating Current
    29 to 60 mA
  • Reverse Voltage(PD)
    20 V
  • Operating Voltage
    1.1 to 1.6 V
  • Cap type
    Flat Window
  • Capacitance
    5 to 10 pF
  • Monitor Current
    100 to 1000 µA
  • Focal Length
    6.25 mm
  • Modulation
    1.25 Gb/s
  • Fiber Modes
    Single Mode
  • Series Resistance
    6 Ohms
  • Lead Soldering Temperature
    260 Degree C
  • Package Type
    TO-Can
  • Package
    5.6 mm

Temperature

  • Operating Temperature
    -40 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C
