ML1470

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1470 from Modulight, Inc. is a Laser Diode with Wavelength 1560 ± 20 nm, Output Power 0.4 W, Output Power (CW) 0.4 W, Threshold Current 700 mA, Operating Current 2 A. More details for ML1470 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1470
  • Manufacturer
    Modulight, Inc.
  • Description

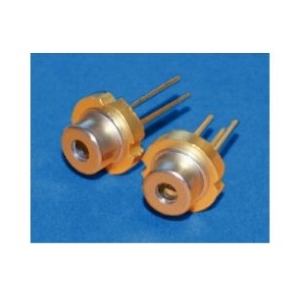

    1550 nm, 400 mW high-power laser in 9 mm TO-can

Applications

  • Application
    Eye-safe range-finding, Materials processing, Low-intensity laser therapy, Illumination, Optical pumping, Aesthetic Treatments
  • Application Industry
    Defense, Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1560 ± 20 nm
  • Output Power
    0.4 W
  • Output Power (CW)
    0.4 W
  • Spectral Width (FWHM)
    9 nm
  • Slope Efficiency
    0.28 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    7 Degree
  • Beam Divergence Perpendicular
    33 Degree
  • Threshold Current :
    700 mA
  • Reverse Voltage
    2 V
  • Operating Current
    2 A
  • Operating Voltage
    1.8 V
  • Fiber Modes
    Multi-Mode
  • Package Type
    TO-Can
  • Package
    9 mm (SOT-148)

Temperature

  • Operating Temperature
    0 to 30 Degree C
  • Storage Temperature
    -40 to 85 Degree C
