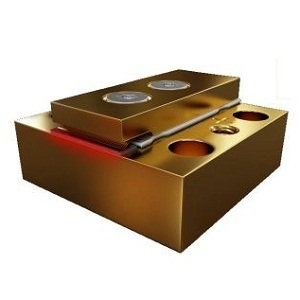

ML1824

Laser Diode by Modulight, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1824 from Modulight, Inc. is a Laser Diode with Wavelength 1470 nm, Output Power 20 W, Output Power (CW) 20 W, Threshold Current 7000 mA, Operating Current 65 A. More details for ML1824 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1824
  • Manufacturer
    Modulight, Inc.
  • Description
    808…1550 nm mounted bars Mounted high-power laser bars in near-IR wavelengths

Applications

  • Application
    Illumination, Materials Processing, Aesthetic Treatments, Range-finding, Optical Pumping, Surgery
  • Application Industry
    Defense, Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1470 nm
  • Output Power
    20 W
  • Output Power (CW)
    20 W
  • Spectral Width (FWHM)
    12 nm
  • Slope Efficiency
    0.35 W/A
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    32 Degree
  • Wavelength Tolerance
    ± 15 nm
  • Threshold Current :
    7000 mA
  • Reverse Voltage
    2 V
  • Operating Current
    65 A
  • Operating Voltage
    1.4 V
  • Laser Diode Bar
    Yes
  • Package Type
    Bar

Temperature

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
