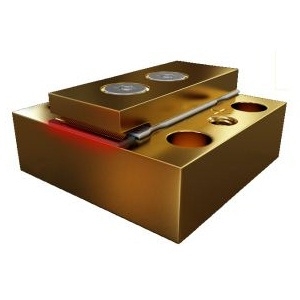

ML1884

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1884 from Modulight, Inc. is a Laser Diode with Wavelength 650 nm, Output Power 10 W, Output Power (CW) 10 W, Threshold Current 12000 mA, Operating Current 25 A. More details for ML1884 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1884
  • Manufacturer
    Modulight, Inc.
  • Description
    ChiliLase mounted bars 632…678 nm mounted high-power laser bars

Applications

  • Application
    Illumination, Photodynamic Therapy, Imaging, Aesthetic Treatments, Laser Projectors
  • Application Industry
    Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    650 nm
  • Output Power
    10 W
  • Output Power (CW)
    10 W
  • Spectral Width (FWHM)
    1.5 nm
  • Slope Efficiency
    0.9 W/A
  • Configuration
    Single Bar
  • Beam Divergence Parallel
    4 Degree
  • Beam Divergence Perpendicular
    35 Degree
  • Wavelength Tolerance
    ± 5 nm
  • Threshold Current :
    12000 mA
  • Operating Current
    25 A
  • Operating Voltage
    2.1 V
  • Laser Diode Bar
    Yes
  • Package Type
    Bar
  • Stack/Array
    Single Bar

Temperature

  • Operating Temperature
    0 to 20 Degree C
  • Storage Temperature
    -40 to 85 Degree C
