ML1886

Laser Diode by Modulight, Inc.
181 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Modulight, Inc..

The ML1886 from Modulight, Inc. is a Laser Diode with Wavelength 650 ± 5 nm, Output Power 10 W, Output Power (CW) 10 W, Threshold Current 12000 mA, Operating Current 25 A. More details for ML1886 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML1886
  • Manufacturer
    Modulight, Inc.
  • Description

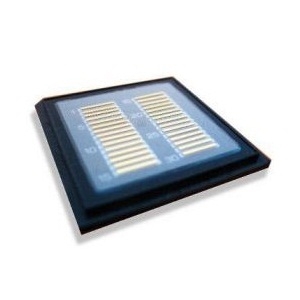

    650 nm high-power laser bar for CW applications

Applications

  • Application
    Laser Projectors, Photodynamic Therapy, Illumination, Aesthetic Treatments, Imaging
  • Application Industry
    Industrial, Medical

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    650 ± 5 nm
  • Output Power
    10 W
  • Output Power (CW)
    10 W
  • Spectral Width (FWHM)
    1.5 nm
  • Slope Efficiency
    0.9 W/A
  • Configuration
    Array
  • Beam Divergence Parallel
    4 Degree
  • Beam Divergence Perpendicular
    35 Degree
  • Threshold Current :
    12000 mA
  • Operating Current
    25 A
  • Operating Voltage
    2.1 V
  • Laser Diode Bar
    Yes
  • Package Type
    Bar
  • Stack/Array
    Array/Stack

Temperature

  • Operating Temperature
    0 to 25 Degree C
  • Storage Temperature
    -40 to 85 Degree C
