NLK1B5GAAA

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to NTT Electronics Corporation.

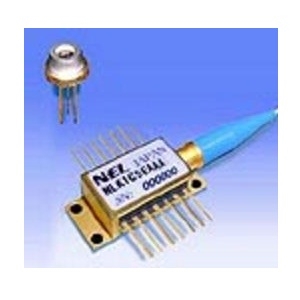

The NLK1B5GAAA from NTT Electronics Corporation is a Laser Diode with Wavelength 1260 to 1360 nm, Output Power 20 mW, Output Power 0.02 W, Output Power (CW) 0.02 W, Threshold Current 10 to 20 mA. More details for NLK1B5GAAA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NLK1B5GAAA
  • Manufacturer
    NTT Electronics Corporation
  • Description
    DFB lasers for gas sensing

Applications

  • Application
    Near-IR gas analysis, Tunable diode laser absorption spectroscopy (TDLAS), Fiber optic sensors

General Parameters

  • Technology
    Distributed Feedback (DFB)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1260 to 1360 nm
  • Output Power
    20 mW
  • Output Power
    0.02 W
  • Output Power (CW)
    0.02 W
  • Spectral Width (FWHM)
    2 MHz
  • Threshold Current :
    10 to 20 mA
  • Forward Voltage
    1.2 to 1.6 V
  • Forward Current(PD)
    10 mA
  • Peak Forward Current
    225 mA
  • Reverse Voltage
    2 V
  • Reverse Voltage(PD)
    10 V
  • Monitor Current
    0.1 mA
  • Laser Color
    NIR
  • Photo Diode Dark Current
    100 nA
  • Package Type
    Butterfly
  • Package
    14 pin

Connections & Interface

  • Connector
    FC, PC

Temperature

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
