CVB 450-TO56R

Laser Diode by OSI Laser Diode, Inc.
Request Quote

Note: Your Quotation Request will be directed to OSI Laser Diode, Inc..

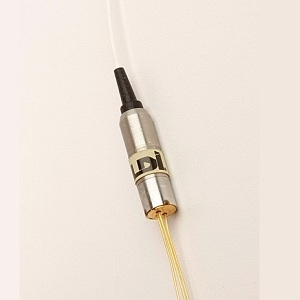

The CVB 450-TO56R from OSI Laser Diode is a laser diode module is a 450 nm GaN laser diode packaged in a 3 pin coaxial format. The laser diode is optically coupled to a 200/230/500um fiber pigtail. The device includes an ESD protection diode. The CVB 450-TO56R laser diode module is specifically designed for uncooled optical metrology applications where pulsed optical power is desired. It is RoHS compliant.

Product Specifications

View similar products

Product Details

  • Part Number
    CVB 450-TO56R
  • Manufacturer
    OSI Laser Diode, Inc.
  • Description
    450 nm Pulsed Laser Diode Module for Metrology Applications

Applications

  • Application
    Optical Metrology

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    450 nm
  • Output Power
    2 W
  • Spectral Width (FWHM)
    1 nm
  • Chip Technology
    GaN
  • Duty Cycle
    0.01%
  • Threshold Current :
    300 mA
  • Forward Voltage
    6 V
  • Peak Forward Current
    2500 mA
  • Operating Current
    2 A
  • Operating Voltage
    6 V
  • Numerical Aperture
    0.37
  • Package Type
    TO-Can Pigtailed
  • Package
    3 pin coaxial Package

Physical Properties

  • Fiber length
    1 Meter
  • RoHS
    Yes

Temperature

  • Operating Temperature
    -30 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
Click to view more product details on manufacturer's website
