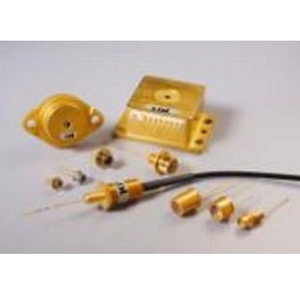

CVN 5S63

Laser Diode by OSI Laser Diode, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OSI Laser Diode, Inc..

The CVN 5S63 from OSI Laser Diode, Inc. is a Laser Diode with Wavelength 905 nm, Output Power 300 to 375 W, Output Power (CW) 300 to 375 W, Threshold Current 800 mA, Operating Temperature -40 to 85 Degree C. More details for CVN 5S63 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CVN 5S63
  • Manufacturer
    OSI Laser Diode, Inc.
  • Description
    High Power Monolithic Stack Pulsed Laser Diodes

Applications

  • Application
    Range finding, Ceilometers, Weapons Simulation, Surveying Equipment, Homeland Security, LIDAR, Adaptive Cruise Control

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    905 nm
  • Output Power
    300 to 375 W
  • Output Power (CW)
    300 to 375 W
  • Spectral Width (FWHM)
    8 nm
  • Configuration
    Single-Emitter
  • Threshold Current :
    800 mA
  • Forward Current(PD)
    30 A
  • Peak Power
    300 to 375 W
  • Package Type
    TO-Can
  • Package
    TO18, 9mm, TO5
  • Note
    Rise fall time: 1 ns

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
