LHCVN5S63-30

Laser Diode by OSI Laser Diode, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OSI Laser Diode, Inc..

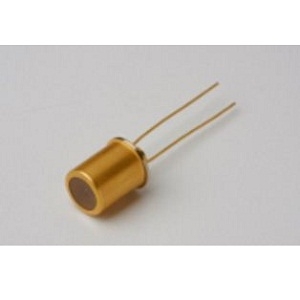

The LHCVN5S63-30 from OSI Laser Diode, Inc. is a Laser Diode with Wavelength 905 nm, Output Power 350 W, Output Power (CW) 350 W, Operating Voltage 100 V, Operating Temperature 0 to 70 Degree C. More details for LHCVN5S63-30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LHCVN5S63-30
  • Manufacturer
    OSI Laser Diode, Inc.
  • Description
    Hybrid Laser Diodes for Pulsed Operations

Applications

  • Application
    Range finders, Ceilometers, Weapons Simulation, Surveying, LIDAR

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    Pulsed Laser
  • Wavelength
    905 nm
  • Output Power
    350 W
  • Output Power (CW)
    350 W
  • Spectral Width (FWHM)
    5 to 12 nm
  • Pulse Duration
    30 nS
  • Configuration
    Single-Emitter
  • Operating Voltage
    100 V
  • Package Type
    TO-Can
  • Package
    TO5
  • Note
    Rise fall time: 2 nS

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    0 to 75 Degree C

Technical Documents
Click to view more product details on manufacturer's website
