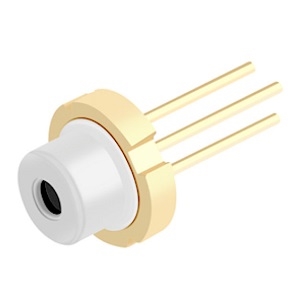

SPL TL90AT03

Laser Diode by OSRAM

Note: Your Quotation Request will be directed to OSRAM.

The SPL TL90AT03 from OSRAM is a Pulsed laser Diode that operates at a wavelength of 905 nm. It delivers a peak output power of 65 W with a pulse width of 1-100 ns and spectral bandwidth of 7 nm. This laser diode has 3 emitters and beam divergence (FWHM) of 10° (parallel) & 25° (perpendicular). It has a laser aperture (FWHM) of 110 μm (parallel) and 10 μm (perpendicular). This laser diode has a threshold current of 0.3 A and a reverse voltage of 3 V. It requires a DC supply of 9.5 V and has a forward current of up to 20 A. This laser diode is available in a TO-56 package that measures Ø5.6 x 10 mm and is ideal for 3D Sensing, CCTV surveillance, electronic equipment, gesture recognition, high bay, and industrial automation (machine controls, light barriers, vision controls) applications.

Product Specifications View similar products

Product Details

  • Part Number
    SPL TL90AT03
  • Manufacturer
    OSRAM
  • Description
    905 nm Pulsed laser Diode for Surveillance and Industrial Applications

Applications

  • Application
    3D Sensing, CCTV Surveillance, Electronic Equipment, Gesture Recognition, Highbay Industrial, Industrial Automation (Machine Controls, Light Barriers, Vision Controls)
  • Application Industry
    Security

General Parameters

  • Configuration
    Multi-Emitter
  • Operation Mode
    Pulsed Laser
  • Wavelength
    898 nm, 905 nm, 912 nm
  • Output Power
    65000 mW
  • Output Power
    65 W
  • Pulse Duration
    1 to 100 ns
  • Spectral Width (FWHM)
    7 nm
  • Operating Voltage
    9.5 V
  • Operating Current
    20 A
  • Duty Cycle
    0.001
  • Operating Current
    20 A
  • Reverse Voltage
    3 V
  • Threshold Current
    0.3 A
  • Beam Divergence
    10 Degrees (Parallel), 25 Degrees (Perpendicular)
  • Beam Divergence Parallel
    10 Degrees
  • Beam Divergence Perpendicular
    25 Degrees
  • Laser Color
    Infrared
  • Number of Emitters
    3
  • Package Type
    TO-Can
  • Peak Power
    75 W
  • Package
    TO-56 Package
  • Lead Soldering Temperature
    260 Degree C
  • Thermistor Resistance
    35 K / W
  • Type
    Free Space Laser Diode

Physical Properties

  • Weight
    312 mg
  • RoHS
    Yes

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
