R1064±0.5-150mWW-04BCK-S-TG

Laser Diode by RealLight
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RealLight.

The R1064±0.5-150mWW-04BCK-S-TG from RealLight is a Laser Diode with Wavelength 1064 nm (Center), Output Power 150 mW, Output Power 150 mW, Output Power (CW) 150 mW, Threshold Current 40 A. More details for R1064±0.5-150mWW-04BCK-S-TG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    R1064±0.5-150mWW-04BCK-S-TG
  • Manufacturer
    RealLight
  • Description

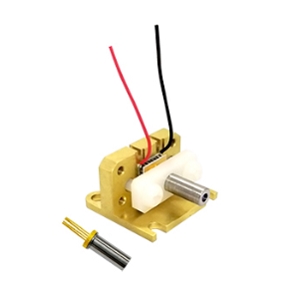

    1064 nm, 04BCK Diode Laser with Fiber Pigtailed Package

Applications

  • Application
    Spectrum analysis, Biological detection

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1064 nm (Center)
  • Output Power
    150 mW
  • Output Power
    150 mW
  • Output Power (CW)
    150 mW
  • Spectral Width (FWHM)
    <0.1 nm
  • Slope Efficiency
    0.9 W/A
  • Wavelength Tolerance
    ±0.5 nm
  • Threshold Current :
    40 A
  • Operating Current
    210 A
  • Operating Current
    210 A
  • Operating Voltage
    2 V
  • Thermistor Resistance
    10 kOhms
  • Laser Color
    Infrared
  • Fiber Modes
    Single Mode
  • Lead Soldering Temperature
    250 Degree C
  • Package Type
    Module
  • Package
    Module
  • Relative Humidity
    75% (Operating)/90% (Storage)

Temperature

  • Temperature Drift
    0.01 nm/Degree C
  • Operating Temperature
    10 to 30 Degree C
  • Storage Temperature
    -20 to 70 Degree C
