RLD90QZW3

Laser Diode by ROHM Semiconductor

Note: Your Quotation Request will be directed to ROHM Semiconductor.

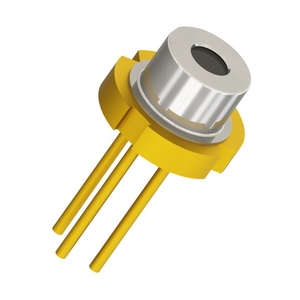

The RLD90QZW3 from ROHM Semiconductor is an Invisible Pulsed Laser Diode that operates at a wavelength of 905 nm. It delivers a peak pulsed output power of 75 W with a pulse width of 50 ns. This laser diode has a beam divergence of 10 degrees (parallel) and 25 degrees (perpendicular) with an emission point accuracy of ±150 μm. It has an aperture of size 225 x 10 μm. This laser diode requires a DC supply of 16 V and has a threshold current of 0.9 A. It is available in a Ø5.6 mm TO-Can package and is ideal for TOF sensor, range finders, automatic guided vehicles (AGVs) and security applications.

Product Specifications View similar products

Product Details

  • Part Number
    RLD90QZW3
  • Manufacturer
    ROHM Semiconductor
  • Description
    905 nm Invisible Pulsed Laser Diode

Applications

  • Application
    Autonomous Vehicles, Security, LIDAR (Laser Imaging Detection and Ranging)

General Parameters

  • Configuration
    Single Emitter
  • Operation Mode
    Pulsed Laser
  • Wavelength
    895 to 915 nm
  • Output Power
    75 W (Pulsed)
  • Pulse Duration
    50 ns
  • Operating Voltage
    16 to 22 V
  • Operating Current
    30 A
  • Reverse Voltage
    2 V
  • Threshold Current
    900 mA
  • Beam Divergence Parallel
    4 to 16 Degree
  • Beam Divergence Perpendicular
    18 to 32 Degree
  • Duty Factor
    0.1 %
  • Emitting Area
    225 x 10 um
  • Package Type
    TO-Can
  • Package
    TO-5.6 mm
  • Type
    Free Space Laser Diode

Physical Properties

  • RoHS
    Yes

Temperature

  • Temperature Drift
    0.25 nm/°C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
