LDM-0808-300m-11

Laser Diode by Roithner Lasertechnik
186 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The LDM-0808-300m-11 from Roithner Lasertechnik is a Laser Diode with Wavelength 808 nm, Output Power 0.3 W, Output Power (CW) 0.3 W, Threshold Current 100 mA, Operating Current 0 to 0.4 A. More details for LDM-0808-300m-11 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDM-0808-300m-11
  • Manufacturer
    Roithner Lasertechnik

Applications

  • Application
    Solid State Laser Pumping, Medical Usage, Target Designator, Free Space Communication, Infrared Light Source

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Output Power
    0.3 W
  • Output Power (CW)
    0.3 W
  • Spectral Width (FWHM)
    2.5 nm
  • Slope Efficiency
    0.95 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    38 Degree
  • Wavelength Tolerance
    ±5 nm
  • Threshold Current :
    100 mA
  • Operating Current
    0 to 0.4 A
  • Operating Voltage
    2 V
  • Laser Color
    Infrared
  • Emitting Area
    30 x 1 µm²
  • Fiber Modes
    Multi-Mode

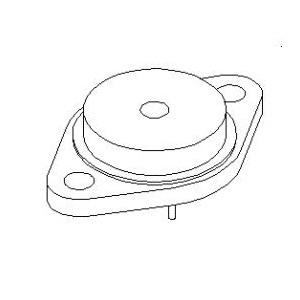

  • Package Type
    C-Mount
  • Package
    C-Mount, TO-3
  • Note
    Package Size: 5.6 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C
