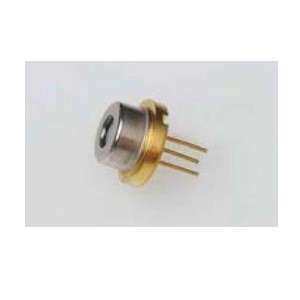

RLT1060-350G

Laser Diode by Roithner Lasertechnik
186 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT1060-350G from Roithner Lasertechnik is a Laser Diode with Wavelength 1059 to 1069 nm, Output Power 0.35 W, Output Power (CW) 0.35 W, Threshold Current 50 to 100 mA, Operating Current 0.45 to 0.55 A. More details for RLT1060-350G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT1060-350G
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1059 to 1069 nm
  • Output Power
    0.35 W
  • Output Power (CW)
    0.35 W
  • Spectral Width (FWHM)
    0.5 to 2 nm
  • Slope Efficiency
    0.8 to 0.9 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    28 Degree
  • Threshold Current :
    50 to 100 mA
  • Operating Current
    0.45 to 0.55 A
  • Operating Voltage
    1.7 to 2 V
  • Laser Color
    Infrared
  • Fiber Modes
    Single Mode
  • Expected Lifetime
    100000 Hrs
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm (SOT-148)
  • Note
    Package Size: 9 mm

Physical Properties

  • RoHS
    Yes
