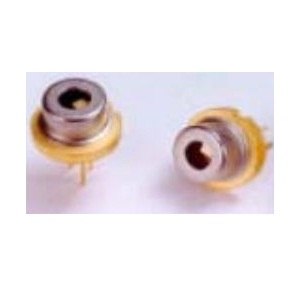

RLT1550-40G

Laser Diode by Roithner Lasertechnik
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT1550-40G from Roithner Lasertechnik is a Laser Diode with Wavelength 1563 to 1567 nm, Output Power 0.04 W, Output Power (CW) 0.04 W, Threshold Current 32 to 42 mA, Operating Current 0.163 to 0.192 A. More details for RLT1550-40G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT1550-40G
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1563 to 1567 nm
  • Output Power
    0.04 W
  • Output Power (CW)
    0.04 W
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    45 Degree
  • Threshold Current :
    32 to 42 mA
  • Operating Current
    0.163 to 0.192 A
  • Operating Voltage
    2 V
  • Laser Color
    Infrared
  • Fiber Modes
    Single Mode
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm
  • Note
    Package Size: 9 mm

Physical Properties

  • RoHS
    Yes
