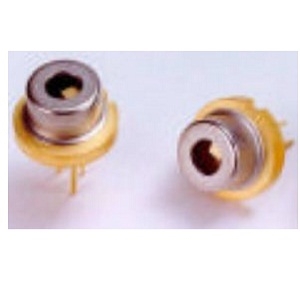

RLT6615G

Laser Diode by Roithner Lasertechnik
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT6615G from Roithner Lasertechnik is a Laser Diode with Wavelength 660 to 670 nm, Output Power 0.015 W, Output Power (CW) 0.015 W, Threshold Current 25 to 60 mA, Operating Current 0.05 to 0.07 A. More details for RLT6615G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT6615G
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    660 to 670 nm
  • Output Power
    0.015 W
  • Output Power (CW)
    0.015 W
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    9 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Laser Gain Medium
    AlGaAlP
  • Threshold Current :
    25 to 60 mA
  • Operating Current
    0.05 to 0.07 A
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2.5 to 2.6 V
  • Monitor Current
    100 µA
  • Laser Color
    Visible
  • Fiber Modes
    Single Mode
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm
  • Note
    Package Size: 5.6 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
