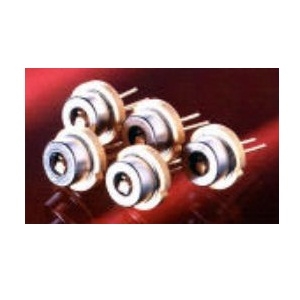

RLT6650GLI

Laser Diode by Roithner Lasertechnik
186 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT6650GLI from Roithner Lasertechnik is a Laser Diode with Wavelength 655 to 660 nm, Output Power 0.05 W, Output Power (CW) 0.05 W, Threshold Current 120 to 135 mA, Operating Current 0.18 to 0.25 A. More details for RLT6650GLI can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT6650GLI
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    655 to 660 nm
  • Output Power
    0.05 W
  • Output Power (CW)
    0.05 W
  • Slope Efficiency
    0.6 to 1.0 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    7 Degree
  • Beam Divergence Perpendicular
    38 Degree
  • Threshold Current :
    120 to 135 mA
  • Operating Current
    0.18 to 0.25 A
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    2 to 2.5 V
  • Monitor Current
    0.5 to 2 mA
  • Fiber Modes
    Multi-Mode
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm
  • Note
    Beam Pointing Accuracy (FWHM): ±3 Degree, Package Size: 5.6 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -10 to 40 Degree C
  • Storage Temperature
    -40 to 85 Degree C
