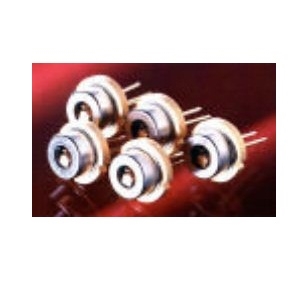

RLT91500G

Laser Diode by Roithner Lasertechnik
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The RLT91500G from Roithner Lasertechnik is a Laser Diode with Wavelength 915 to 920 nm, Output Power 0.5 W, Output Power (CW) 0.5 W, Threshold Current 80 to 120 mA, Operating Current 0.5 to 0.7 A. More details for RLT91500G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RLT91500G
  • Manufacturer
    Roithner Lasertechnik

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    915 to 920 nm
  • Output Power
    0.5 W
  • Output Power (CW)
    0.5 W
  • Spectral Width (FWHM)
    10 nm
  • Slope Efficiency
    0.8 to 1.2 mW/mA
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    40 Degree
  • Laser Gain Medium
    AlGaAs
  • Threshold Current :
    80 to 120 mA
  • Operating Current
    0.5 to 0.7 A
  • Reverse Voltage(PD)
    30 V
  • Operating Voltage
    1.6 to 2 V
  • Monitor Current
    150 to 800 mA
  • Laser Color
    Infrared
  • Fiber Modes
    Multi-Mode
  • Package Type
    DIL / DIP / Through-Hole, TO-Can
  • Package
    9 mm
  • Note
    Package Size: 9 mm

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -40 to 50 Degree C
  • Storage Temperature
    -70 to 85 Degree C
