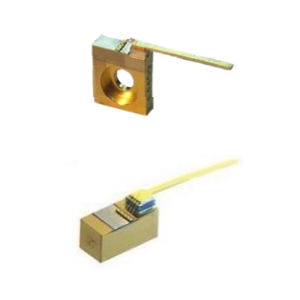

LDX-3115-1620

Laser Diode by RPMC Lasers Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RPMC Lasers Inc..

The LDX-3115-1620 from RPMC Lasers Inc. is a Laser Diode with Wavelength 1620 nm, Output Power 800 mW (Fiber) to 1000 mW, Output Power 800 to 1000 mW, Threshold Current 1000 mA, Operating Current 6100 mA. More details for LDX-3115-1620 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDX-3115-1620
  • Manufacturer
    RPMC Lasers Inc.
  • Description
    1620 nm Multimode Laser Diode

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1620 nm
  • Output Power
    800 mW (Fiber) to 1000 mW
  • Output Power
    800 to 1000 mW
  • Spectral Width (FWHM)
    7 nm
  • Configuration
    Single-Emitter
  • Beam Divergence
    7 Degrees (Parallel), 40 Degrees (Perpendicular)
  • Beam Divergence Parallel
    7 Degrees
  • Beam Divergence Perpendicular
    40 Degrees
  • Wavelength Tolerance
    20 nm
  • Transverse Mode
    TE
  • Threshold Current :
    1000 mA
  • Operating Current
    6100 mA
  • Operating Current
    6100 mA
  • Operating Voltage
    1.2 V
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    150 µm
  • Fiber Modes
    Multi-Mode
  • Package Type
    C-Mount
  • Package
    Cstd, B

Physical Properties

  • Fiber length
    200 µm (HHL, Butterfly), 300 µm (9mm SMA)

Temperature

  • Operating Temperature
    20 Degree C
