LDX-3210-1675

Laser Diode by RPMC Lasers Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RPMC Lasers Inc..

The LDX-3210-1675 from RPMC Lasers Inc. is a Laser Diode with Wavelength 1675 nm, Output Power 1600 mW (Fiber) to 2000 mW, Output Power 1600 to 2000 mW, Threshold Current 1300 mA, Operating Current 7200 mA. More details for LDX-3210-1675 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDX-3210-1675
  • Manufacturer
    RPMC Lasers Inc.
  • Description
    1675 nm Multimode Laser Diode

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1675 nm
  • Output Power
    1600 mW (Fiber) to 2000 mW
  • Output Power
    1600 to 2000 mW
  • Spectral Width (FWHM)
    8 nm
  • Configuration
    Single-Emitter
  • Beam Divergence
    7 Degrees (Parallel), 40 Degrees (Perpendicular)
  • Beam Divergence Parallel
    7 Degrees
  • Beam Divergence Perpendicular
    40 Degrees
  • Wavelength Tolerance
    20 nm
  • Transverse Mode
    TE
  • Threshold Current :
    1300 mA
  • Operating Current
    7200 mA
  • Operating Current
    7200 mA
  • Operating Voltage
    1.2 V
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    100 µm
  • Fiber Modes
    Multi-Mode

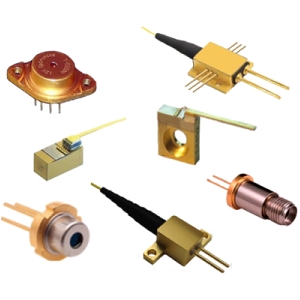

  • Package Type
    C-Mount, B-Mount, Q-Mount, Chip, Sub-Mount, Module with connectors, TO-Can, HHL, HHL Pigtail
  • Package
    Cmed, B, Q, COS, 9MM, TO3 w TEC, TO3 w/o TEC, HHL, 9MM SMA, HHLFC, BFC TEC, BFC w/o TEC, FCP

Physical Properties

  • Fiber length
    100 µm (HHL, Butterfly), 250 µm (9mm SMA)

Connections & Interface

  • Connector
    SMA

Temperature

  • Operating Temperature
    20 Degree C
