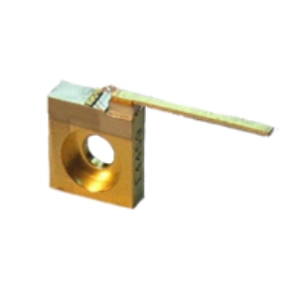

LDX-3518-1550

Laser Diode by RPMC Lasers Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RPMC Lasers Inc..

The LDX-3518-1550 from RPMC Lasers Inc. is a Laser Diode with Wavelength 1550 nm, Output Power 4000 mW (Fiber) to 5000 mW, Output Power 4000 to 5000 mW, Threshold Current 800 mA, Operating Current 14000 mA. More details for LDX-3518-1550 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDX-3518-1550
  • Manufacturer
    RPMC Lasers Inc.
  • Description
    1550 nm Multimode Laser Diode

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1550 nm
  • Output Power
    4000 mW (Fiber) to 5000 mW
  • Output Power
    4000 to 5000 mW
  • Spectral Width (FWHM)
    9 nm
  • Configuration
    Single-Emitter
  • Beam Divergence
    8 Degrees (Parallel), 30 Degrees (Perpendicular)
  • Beam Divergence Parallel
    8 Degrees
  • Beam Divergence Perpendicular
    30 Degrees
  • Wavelength Tolerance
    20 nm
  • Transverse Mode
    TE
  • Threshold Current :
    800 mA
  • Operating Current
    14000 mA
  • Operating Current
    14000 mA
  • Operating Voltage
    1.5 V
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    180 µm
  • Fiber Modes
    Multi-Mode
  • Package Type
    C-Mount
  • Package
    Cmed

Physical Properties

  • Fiber length
    200 µm (HHL, Butterfly), 300 µm (9mm SMA)

Temperature

  • Operating Temperature
    25 Degree C
