LDX-3520-785

Laser Diode by RPMC Lasers Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RPMC Lasers Inc..

The LDX-3520-785 from RPMC Lasers Inc. is a Laser Diode with Wavelength 785 nm, Output Power 4000 mW (Fiber) to 5000 mW, Output Power 4000 to 5000 mW, Threshold Current 800 mA, Operating Current 5000 mA. More details for LDX-3520-785 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDX-3520-785
  • Manufacturer
    RPMC Lasers Inc.
  • Description
    785 nm Multimode Laser Diode

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    785 nm
  • Output Power
    4000 mW (Fiber) to 5000 mW
  • Output Power
    4000 to 5000 mW
  • Spectral Width (FWHM)
    1.8 nm
  • Configuration
    Single-Emitter
  • Beam Divergence
    7 Degrees (Parallel), 26 Degrees (Perpendicular)
  • Beam Divergence Parallel
    7 Degrees
  • Beam Divergence Perpendicular
    26 Degrees
  • Wavelength Tolerance
    3 nm
  • Transverse Mode
    TE
  • Threshold Current :
    800 mA
  • Operating Current
    5000 mA
  • Operating Current
    5000 mA
  • Operating Voltage
    1.8 V
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    200 µm
  • Fiber Modes
    Multi-Mode

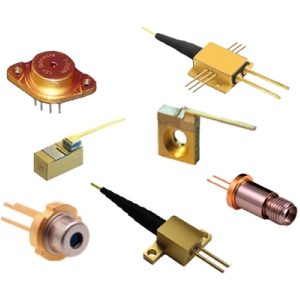

  • Package Type
    C-Mount, B-Mount, Q-Mount, Chip, Sub-Mount, TO-Can, HHL, HHL Pigtail
  • Package
    Cstd, B, Q, COS, TO3 w/o TEC, HHL, BFC w/o TEC, FCP

Physical Properties

  • Fiber length
    200 µm (HHL, Butterfly), 350 µm (9mm SMA)

Temperature

  • Operating Temperature
    25 Degree C
