LDX-3A10-960

Laser Diode by RPMC Lasers Inc.
116 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RPMC Lasers Inc..

The LDX-3A10-960 from RPMC Lasers Inc. is a Laser Diode with Wavelength 960 nm, Output Power 8000 mW (Fiber) to 10000 mW, Output Power 8000 to 10000 mW, Threshold Current 550 mA, Operating Current 10000 mA. More details for LDX-3A10-960 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDX-3A10-960
  • Manufacturer
    RPMC Lasers Inc.
  • Description
    960 nm Multimode Laser Diode

General Parameters

  • Type
    Free Space Laser Diode, Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    960 nm
  • Output Power
    8000 mW (Fiber) to 10000 mW
  • Output Power
    8000 to 10000 mW
  • Spectral Width (FWHM)
    3 nm
  • Configuration
    Single-Emitter
  • Beam Divergence
    7 Degrees (Parallel), 28 Degrees (Perpendicular)
  • Beam Divergence Parallel
    7 Degrees
  • Beam Divergence Perpendicular
    28 Degrees
  • Wavelength Tolerance
    10 nm
  • Transverse Mode
    TE
  • Threshold Current :
    550 mA
  • Operating Current
    10000 mA
  • Operating Current
    10000 mA
  • Operating Voltage
    1.5 V
  • Laser Color
    Infrared
  • Emitting Size/Emitter Chip
    100 µm
  • Fiber Modes
    Multi-Mode

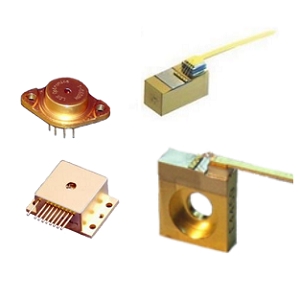

  • Package Type
    C-Mount, B-Mount, Q-Mount, Chip, Sub-Mount, TO-Can, HHL, HHL Pigtail
  • Package
    Cstd, B, Q, COS, TO3 w/o TEC, HHL, BFC w/o TEC, FCP

Physical Properties

  • Fiber length
    100 µm (HHL, Butterfly), 250 µm (9mm SMA)

Temperature

  • Operating Temperature
    25 Degree C
