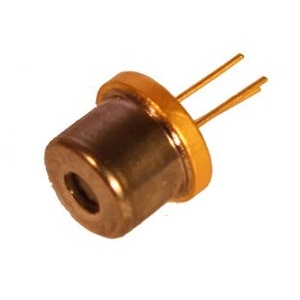

TO9-140-161

Laser Diode by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The TO9-140-161 from SemiNex Corporation is a Laser Diode with Wavelength 1665 nm(+/-20), Output Power 0.2 W, Output Power 0.2 W, Output Power (CW) 0.2 W, Threshold Current 0.05 A. More details for TO9-140-161 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TO9-140-161
  • Manufacturer
    SemiNex Corporation
  • Description
    TO-9 PACKAGED LASER DIODE- CAPPED

Applications

  • Application
    OEM Medical, Professional Medical, LiDAR, Military / Aerospace, Illumination

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    1665 nm(+/-20)
  • Output Power
    0.2 W
  • Output Power
    0.2 W
  • Output Power (CW)
    0.2 W
  • Spectral Width (FWHM)
    10 nm
  • Slope Efficiency
    0.3 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Duty Cycle
    100%
  • Emitter Width
    5 µm
  • Wavelength Temp. Coefficient
    0.55 nm/Degree C
  • Power Conversion Efficiency
    0.17
  • Threshold Current :
    0.05 A
  • Operating Current
    0.65 A
  • Operating Current
    0.65 A
  • Operating Voltage
    2.2 V
  • Operating Current (CW)
    0.65 A
  • Fiber Modes
    Single Mode
  • Number of Emitters
    1
  • Series Resistance
    2 Ohms
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • Weight
    2 g

Temperature

  • Operating Temperature
    10 to 30 °C
  • Storage Temperature
    -20 to 80 °C
