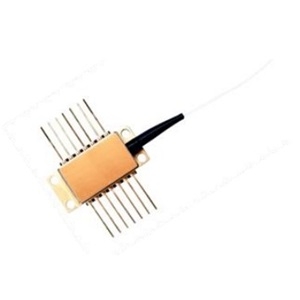

BF-940-0050-PPF

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The BF-940-0050-PPF from Sheaumann Laser is a Laser Diode with Wavelength 940 nm, Output Power 50 mW, Output Power 50 mW, Threshold Current 35 to 55 mA, Operating Current 100 to 160 mA. More details for BF-940-0050-PPF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BF-940-0050-PPF
  • Manufacturer
    Sheaumann Laser
  • Description
    940 nm Laser Diodes with 50 mW Power

General Parameters

  • Technology
    Fiber-Bragg-Grating (FBG)
  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    940 nm
  • Output Power
    50 mW
  • Output Power
    50 mW
  • Slope Efficiency
    0.5 to 0.7 W/A
  • Threshold Current :
    35 to 55 mA
  • Operating Current
    100 to 160 mA
  • Operating Current
    100 to 160 mA
  • Operating Voltage
    1.7 to 2 V
  • Thermistor Resistance
    10 kOhms
  • Laser Class
    CLASS IV
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly

Physical Properties

  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
