BF-980-0200-SXX

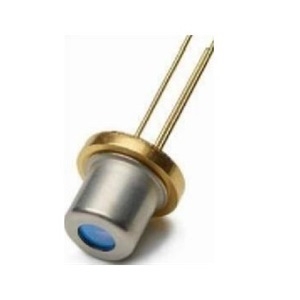

Laser Diode by Sheaumann Laser
289 more products from this company
Visit company website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The BF-980-0200-SXX from Sheaumann Laser is a Laser Diode with Wavelength 980 nm, Output Power 200 mW, Output Power 200 mW, Threshold Current 35 to 50 mA, Operating Current 300 to 400 mA. More details for BF-980-0200-SXX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BF-980-0200-SXX
  • Manufacturer
    Sheaumann Laser
  • Description
    980 nm Laser Diodes with 200 mW Power

General Parameters

  • Type
    Fiber-Coupled Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    980 nm
  • Output Power
    200 mW
  • Output Power
    200 mW
  • Slope Efficiency
    0.7 W/A
  • Threshold Current :
    35 to 50 mA
  • Operating Current
    300 to 400 mA
  • Operating Current
    300 to 400 mA
  • Operating Voltage
    2.1 to 2.5 V
  • Thermistor Resistance
    10 kOhms
  • Laser Class
    CLASS IIIb
  • Fiber Modes
    Single Mode
  • Package Type
    Butterfly
  • Package
    14-Pin Butterfly

Physical Properties

  • RoHS
    Yes

Connections & Interface

  • Connector
    FC/APC

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
