CMD-808-6000-2XX

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The CMD-808-6000-2XX from Sheaumann Laser is a Laser Diode with Wavelength 808 nm, Output Power 6 W, Output Power 6 W, Threshold Current 0.9 to 1.1 A, Operating Current 6.2 to 7.1 A. More details for CMD-808-6000-2XX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CMD-808-6000-2XX
  • Manufacturer
    Sheaumann Laser
  • Description

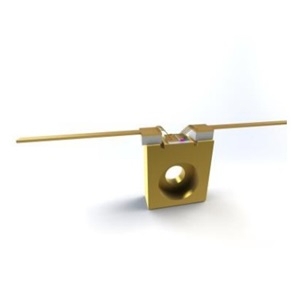

    808 nm Laser Diodes with 6 W Power in Sub-Mount Package

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    808 nm
  • Output Power
    6 W
  • Output Power
    6 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    30 Degree (Vertical), 8 Degree (Horizontal)
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    25 Degree
  • Emitter Width
    200 µm
  • Threshold Current :
    0.9 to 1.1 A
  • Operating Current
    6.2 to 7.1 A
  • Operating Current
    6.2 to 7.1 A
  • Operating Voltage
    1.9 to 2.4 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Sub-Mount
  • Package
    Sub-Mount

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
