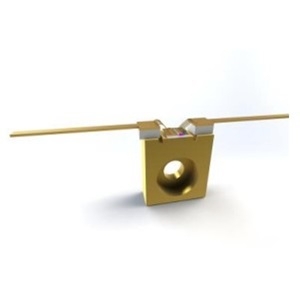

CMD-915-3000-1XX

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The CMD-915-3000-1XX from Sheaumann Laser is a Laser Diode with Wavelength 915 nm, Output Power 3 W, Output Power 3 W, Threshold Current 350 to 550 mA, Operating Current 3.3 to 3.8 A. More details for CMD-915-3000-1XX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CMD-915-3000-1XX
  • Manufacturer
    Sheaumann Laser
  • Description
    915 nm Multi Mode Laser Diodes with 3 W Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    915 nm
  • Output Power
    3 W
  • Output Power
    3 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    30 Degree (Vertical), 8 Degree (Horizontal)
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Emitter Width
    100 µm
  • Threshold Current :
    350 to 550 mA
  • Operating Current
    3.3 to 3.8 A
  • Operating Current
    3.3 to 3.8 A
  • Operating Voltage
    1.7 to 2.2 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Sub-Mount
  • Package
    Sub-Mount

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
