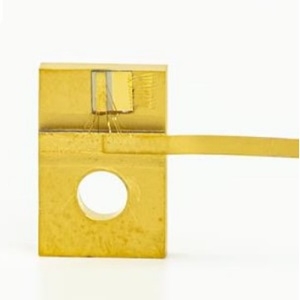

CT-975-6000-2XX

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The CT-975-6000-2XX from Sheaumann Laser is a Laser Diode with Wavelength 975 nm, Output Power 6 W, Output Power 6 W, Threshold Current 1.2 to 1.8 A, Operating Current 10 to 11 A. More details for CT-975-6000-2XX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CT-975-6000-2XX
  • Manufacturer
    Sheaumann Laser
  • Description
    975 nm Multi Mode Laser Diodes with 6 W Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    975 nm
  • Output Power
    6 W
  • Output Power
    6 W
  • Slope Efficiency
    0.9 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    30 Degree (Vertical), 8 Degree (Horizontal)
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Emitter Width
    400 µm
  • Threshold Current :
    1.2 to 1.8 A
  • Operating Current
    10 to 11 A
  • Operating Current
    10 to 11 A
  • Operating Voltage
    1.7 to 2.3 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Sub-Mount
  • Package
    Sub-Mount

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
