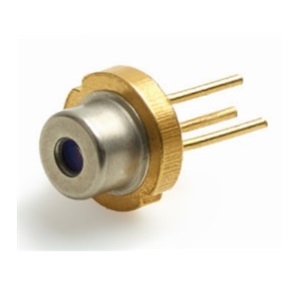

M9-830-0050-XXX

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The M9-830-0050-XXX from Sheaumann Laser is a Laser Diode with Wavelength 830 nm, Output Power 50 mW, Output Power 50 mW, Threshold Current 30 to 50 mA, Operating Current 85 to 110 mA. More details for M9-830-0050-XXX can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M9-830-0050-XXX
  • Manufacturer
    Sheaumann Laser
  • Description
    830 nm Laser Diodes with 50 mW Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    830 nm
  • Output Power
    50 mW
  • Output Power
    50 mW
  • Slope Efficiency
    0.9 W/A
  • Beam Divergence
    18 Degree (Vertical), 8 Degree (Horizontal)
  • Beam Divergence Parallel
    8 Degree
  • Beam Divergence Perpendicular
    18 Degree
  • Threshold Current :
    30 to 50 mA
  • Operating Current
    85 to 110 mA
  • Operating Current
    85 to 110 mA
  • Operating Voltage
    1.9 to 2.2 V
  • Laser Class
    CLASS IIIb
  • Fiber Modes
    Single Mode
  • Package Type
    TO-Can
  • Package
    TO-9

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C
