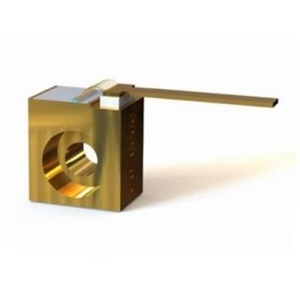

S-Series-CL-MM-975-15W-400um

Laser Diode by Sheaumann Laser | Visit website
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sheaumann Laser.

The S-Series-CL-MM-975-15W-400um from Sheaumann Laser is a Laser Diode with Wavelength 975 nm, Output Power 15 W, Output Power 15 W, Threshold Current 1.5 to 1.8 A, Operating Current 17 to 18 A. More details for S-Series-CL-MM-975-15W-400um can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S-Series-CL-MM-975-15W-400um
  • Manufacturer
    Sheaumann Laser
  • Description
    975 nm Laser Diodes with 15 W Power

General Parameters

  • Type
    Free Space Laser Diode
  • Operation Mode
    CW Laser
  • Wavelength
    975 nm
  • Output Power
    15 W
  • Output Power
    15 W
  • Slope Efficiency
    1 W/A
  • Configuration
    Single-Emitter
  • Beam Divergence
    30 Degree (Vertical), 10 Degree (Horizontal)
  • Beam Divergence Parallel
    10 Degree
  • Beam Divergence Perpendicular
    30 Degree
  • Emitter Width
    400 µm
  • Threshold Current :
    1.5 to 1.8 A
  • Operating Current
    17 to 18 A
  • Operating Current
    17 to 18 A
  • Operating Voltage
    1.7 to 2.2 V
  • Laser Class
    CLASS IV
  • Fiber Modes
    Multi-Mode
  • Package Type
    Sub-Mount
  • Package
    Sub-Mount

Physical Properties

  • RoHS
    Yes

Temperature

  • Operating Temperature
    -20 to 50 Degree C
